Description

Audio Drum Microphones

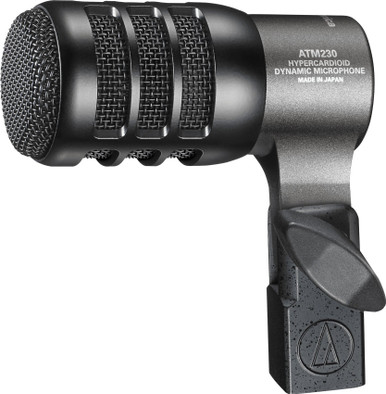

The compact ATM230 Artist Series instrument microphone is specially designed for use with drums. The mic’s proprietary capsule excels in high SPL applications, delivering full, well-rounded audio with an exceptional low-end. The hypercardioid polar pattern keeps the focus on the sound source, directionality that is aided by the mic’s low-profile design, which allows it to be placed in a wide variety of setups. All this makes the ATM230 ideally suited for miking toms, snare and other percussion instruments.

Key Features:

• Metal Construction:
  Perfect for it’s suited use of recording drums, we don’t advice hitting your microphone, but it stands a good chance against a drummer in full swim.
• Hypercardioid Polar Pattern:
  Drums are one of the hardest instruments to capture nicely, this is due to the overspill from other elements all competing for the sonic space. A hypercardioid polar pattern allows you to focus on what you want to record and minimise spill from other sources.
• Included Case:
  Who doesn’t like a good case? Keep all your components together between shows or sessions.

Specifications:

• Capsule: Dynamic
• Polar Pattern: Hypercardioid
• Frequency Response: 30-12,000Hz
• Open Circuit Sensitivity: –54 dB (1.9 mV) re 1V at 1 Pa
• Weight: 292 g (10.3 oz)
• Included Accessories:
  – AT8665 drum mount for 5/8″-27 threaded adaptor
  – 5/8″-27 to 3/8″-16 threaded adaptor
  – Soft protective pouch
