Description

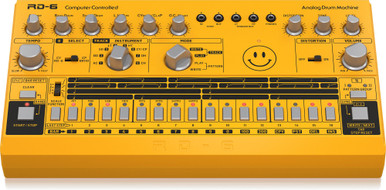

The Behringer RD-6 Rhythm Designer is all you need to become a master beat-maker! Packed into this bite size drum machine are eight massive drum sounds and a 64-step sequencer that’ll shake walls given the chance. Whether you’re new to sequencing or a seasoned pro looking to enhance your setup, the RD-6 has everything you need to produce high quality percussion with a tint of vintage character.

Masterpiece Rejuvenated

There's no hiding that the RD-6 is based on the iconic TR-606 drum machine in both sound and style departments – all the while adding a few modern touches. By taking a fresh approach to the classic drum machine, the RD-6 gives you the power to harness the phenomenal sound of the TR-606 and tap into some new features as well.

Punchy bass drums through to sizzling hi-hats and even the renowned BR-110 clap are all available here, and can be tweaked exactly how you like. This is a true analogue beast!

Complete Control

Built to enhance the way you perform, the RD-6 boasts a 16-step sequencer which allows for real-time switching between 32 separate patterns. Start building song structures on-the-fly and edit them to your desire. Mix any of the 8 drum sounds by adjusting their dedicated settings.

The RD-6 also comes with a distortion based on the legendary DS-1 stompbox. Add some heat to your tone by flipping the distortion switch on and adjusting the gain and tone. Each pattern you create can also be chained into a whole song up to 256 bars, which adds up to eight and a half minutes of beats! Perfect for those spicy jams where you just can’t stop.

Specifications

Voices

• Number of sounds: 8
• Type: Analog
• Number of simultaneous voices: 8

Voice controls

• Accent: Level
• Bass drum: Level
• Snare drum: Level
• Low tom, hi tom: Level
• Cymbal, clap: Level
• Open hat, closed hat: Level

Connectivity

• Power input: DC input connector
• Power switch: Push button on/of
• USB (MIDI): USB 2.0, type B
• MIDI In, Out / Thru: 2 x 5-pin DIN
• Start / stop: 1 x 1/4" TS
• Mix out: 1 x 1/4" TS, unbalanced, 1 kΩ impedance
• Voice out: 6 x 1/8" TS, unbalanced, 100 Ω impedance
• Sync in / out: 2 x 1/8" TRS (Tip is clock and Ring is the start message) more than: 2.5 V
• Trigger outs: LT and HT 2 x +15 V, 1PPS/24PPQ/48PPQ 50% pulse length, 2PPQ narrow pulse length
• Phones: 1 x 1/8" TRS, stereo, 15 Ω impedance

USB

• USB: Class compliant USB 2.0, type B
• Supported operating systems: Windows 7 or higher Mac OS X 10.6.8 or higher

Pattern / Storage

• Capacity: 2 x 16 patterns
• Steps: 16 steps

Power Requirements

• External power adapter: 9 V DC, 670 mA
• Power consumption: 2 W max
• Indicator: Power LED

Environmental

• Operating temperature range: 5°C – 40°C (41°F – 104°F)

Physical

• Dimensions (H x W x D): 56 x 305 x 165 mm (2.2 x 12 x 6.5")
• Weight: 0.9 kg (2.0 lbs)
• Shipping Weight : 1.6 kg (3.5 lbs)
